My Tenere Mods
Hi all,
in this thread i'll be keeping track of all the mods i'll be doing to my Tenere. Just for myself as a log, but also for you guys to share ideas and experience. I've got it since end 2014 and bought from from a Tenere enthusiast, who got it from another one who highly modified it. See pictures below of the bike how it was when i bought it: |
#
2
|
|||
|
|||
Bike specs:
2008 model non ABS about 39k on the clock The list of mods done to it is quite long: - KTM 690 Enduro front fork resprung and shimmed - KTM 690 triple tree with steering stops - custom top yoke - Front Brembo caliper and master brake cylinder - 300mm Braking disc, - Africa Queens Rally front fender - Custom WP 4014 rear shock with preload adjuster - Talon hub and Excel rims front 3.0x17 and rear 1.85x21 - 47 tooth Supersprox rear sprocket with 520 size chain - Magura X-line EX handlebars with KTM risers - Red foam handlebar grips - Acerbis handlebar wind protectors - SW-Motech pegs - white painted fairing parts - USB power socket in dashboard - custom bolt-on tailtidy sized for German numberplate - KTM front axle protector - custom makrolon rear axle protector - CLS electronic chain oiler - Akrapovic exhaust - PowerCommander V with O2 eliminator - Touratech foam filter - speedo corrector Tuned till perfection on the dyno: |
#
3
|
|||
|
|||
What i've done so far:
- swapped air filter for a Off The Road. This model allows me to swap out just the foam on longer dirt trips. The foam is a lot more compact then a complete filter with bracket. Also the filter already in the bike was quite dirty and i couldnt get it cleaned properly. - removed the Stage 2 restrictor ring. Just kept the outer ring. Difference shown in this topic: http://www.xt660.com/showthread.php?t=23455 - changed the battery for a Motobatt. I do this on all my bikes together with a MOSFET R/R. The Motobatt battery is lighter, more powerfull an very reliable. And it has easier terminals, they are threaded, instead of a loose nut which you can loose and is harder to get on when there's more connected. (see test of Motobatt http://www.intruderalert.com/cafe/in...topicID=176271) It has proven itself to me on my previous bikes and on a long trip through Africa. See them both on a scale: 800 grams weight difference The battery bracket had to be modified a little, because the Motobatt lacks the indent on top: - I have still to change the Regulator/Rectifier, but i have one lying around: It is one from a Street Triple and a MOSFET type. The Street Triple had a recall after loads of R/Rs failed, because of a crappy Shunt type version was mounted. Mine died twice, after which i mounted a motobatt and MOSFET and been perfect since. The recall came later on... - I've removed the rear swing arm protector. I think it didn't match with the front axle guard. I'll probably get a standard black one later on. - I've mounted a Fuzebox, to connect accessoires. I've had a similar fusebox on my Tiger 1050 and liked it a lot: not connecting all accessories directly to the battery or tapping into the loom at different points. I don't have pictures of this one yet Last edited by darkhelmet; 05-02-15 at 21:50. |
#
4
|
|||
|
|||
Meanwhile I've ordered some items from Off The Road:
- oil filter maintenance kit - AIS plug kit - "cameltoe" for the side stand - magnetic oil drain plug - airfilter with replacement foam - headlight protector Also on the picture is a tube with Dynabeads. Got this for Christmas. It's for easy balancing the tire. The cameltoe is already on the bike. I removed the Akrapovic, which will be sold this weekend, i hope. I will replace it with a single can setup. Better looks, no cat and lighter. Not sure yet if I'll go for the Exan X-Cone Black or a custom setup. Also i mounted a 12v cigarette plug to the left pillion peg mount. Can be used for an airpump or whatever. I had it on a previous roadtrip and it proved very usefull. Pics will follow And i got some second hand Michelin Anakee 3 tires. The current Michelin Siracs are nearing the end, so i found a good deal on an Anakee set with minimal wear. Last edited by darkhelmet; 05-02-15 at 21:48. |
#
5
|
|||
|
|||
Things on my to-do list:
- mount R/R. I'll cut of the current connector and solder on the wires on the connector from the Street Triple. Those are proper connectors: weather proof! - Change wind screen for a higher and clear version - Exhaust for a single can - Completely remove AIS - Proper tail tidy. Current one doesnt match the Dutch sized numberplate. Probably this one if it will match the new exhaust http://www.shamighmoto.co.uk/index.p...660z/tail-tidy - Heated grips. Probably Oxford Heaterz - Proper handguards, the current ones are for wind/weather protection only. I'll probably go for Barkbusters |
#
6
|
|||
|
|||
Keep the piccies coming
__________________
Plough on |
#
7
|
|||
|
|||
Friday i moved the bike into my appartment. With some buddies we pushed it up the stairs
Time for some farkling! |
#
8
|
|||
|
|||
Quote:
I would have thought you'd have ridden it up the stairs, what with that fancy suspension! Happy farkling! |
#
9
|
|||
|
|||
Yes, that was kind of the plan, but since I had sold my exhaust it was kind of loud, and I don't want any hassle with the neighbours because I'm putting a bike in the building
Meanwhile I put on a MOSFET regulator and a headlight protector. I have a radiator guard but it won't fit properly. The triple tree touches it at its extremes. I think it can be solved with a little mod to the guard. Now I'm in the process of putting on a tail tidy. Then I'll do some maintenance, valve check and an oil change. That will be interesting in the livingroom A Exan exhaust is on its way from Italy I'll add photos soon Last edited by darkhelmet; 28-02-15 at 17:30. |
#
10
|
|||
|
|||
And the Fuzebox:

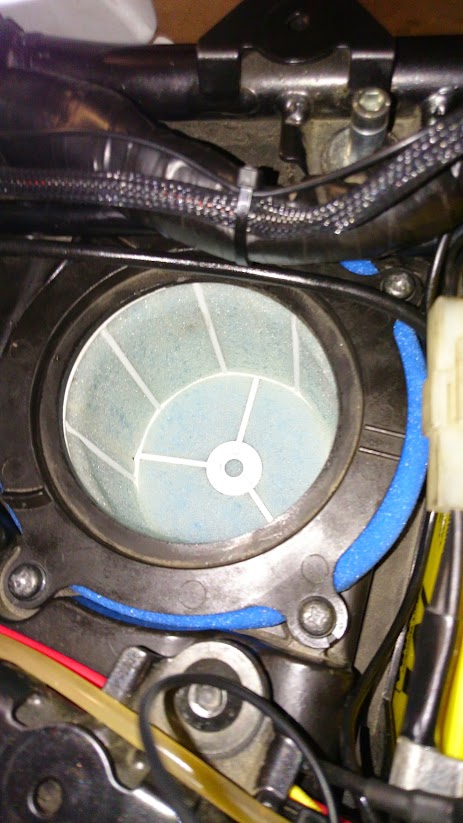

with a 12V cigarette lighter connected And the new OTR airfilter: |
